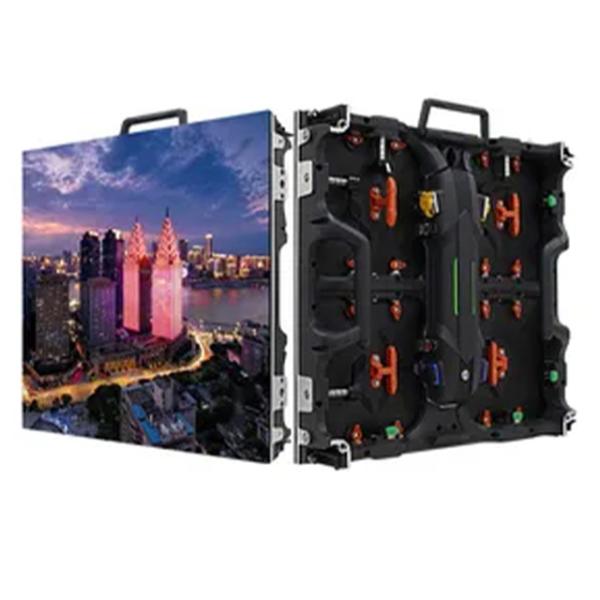

Outdoor Indoor HD Stage Background Slim P3.9 Good Price Rental LED Video Wall Panel Screen

Speification of Outdoor Rental Led Display:

Module Number	PH2.604	PH2.976	PH3.91	PH4.81
Pixel Pitch	2.604mm	2.976mm	3.91mm	4.81mm
Physical Density	147456 pixels/m2	112896 pixels/m2	65536 pixels/m2	43264 pixels/m2
Led Arrangement	3 in 1SMD	3 in 1 SMD	3 in 1SMD	3 in 1 SMD
Module Resolution	96*96 pixels	84*84 pixels	64*64 pixels	52*52 pixels
Module Dimensions	250*250 mm	250*250mm	250*250 mm	250*250mm
Cabinet Resolution	192*192 pixels	168*168 pixel	128*128 pixels	104*104 pixel
Cabinet Dimensions	500*500 mm	500*500 mm	500*500 mm	500*500 mm
Cabinet Weight	7.5kg	7.5kg	7.5kg	7.5kg
Brightness	≥5000 nits	≥5000 nits	≥5000 nits	≥5000 nits
Max Power Consumption	180w/panel	180w/panel	180w/panel	132w/panel
Ave Power Consumption	60w/panel	60w/panel	60w/panel	44w/panel
Viewing Angle	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)
Operating Power source	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz
Operating Temperature	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz
IP Rating	IP65	IP65	IP65	IP65
Signal Input Source	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Verification	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE

Curved Installation

High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use
before. Rotational control, more accurate, easy to use and quickly adjust curve degree.

Shenzhen King Visionled Optoelectronics Co.Ltd is a manufacturer which have lead-edge technologies in solving problems of led field.Jinhe was established in 2006 Shenzhen, with a plant area of 10,000 square meters, stuffs is 300 members,.At the end of 2012,the producing capability was reached up to 10000sq.m per month.It become the leading manufacturer in the LED industry soon.It's one of the fastest growing companies in China.

Stable-quality is the foundation that makes us survive,high quality products and good sales performance is the supporter that drives us moving,innovation and invention is the guarantee that makes the product competitively,talent is a big power that pushes the company become stronger and bigger.Widely using automatic machine production line,it is one of the companies which has the most automated stage of production and have completely equipment and facilities.Our products have passed International Environmental Certification of ROHS,CE,and CCC.That makes the production internationalized.Our products have been sold to more than 60 countries and areas in the world.

RFQ:

Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: 1.2mm/1.6mm/1.9mm/2.5mm/2.9mm/3mm/3.75mm/4mm/5mm/6mm/4.8mm/5.95mm

Q2: Where is indoor LED diplay screen used for?
A2: Indoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc. Indoor fixed installation use.

Q3: Can it play HD video?

A3: Yes, it can realize HD video function with Novastar controlling system.
