China Factory P7.5 P10 Full Color Indoor Film Soft Curved Curtain
High Transparent Led Screen
unction and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are
comprehensive, and also we have three display mode as VGA+VIDE and
VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7
millions, and the brightness, contrast, saturation, chroma can be
adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video,
2-dimention, 3-dimention cartoon and other information with your PC
does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content,
and also can be controlled remotely via VPM+ADSL.

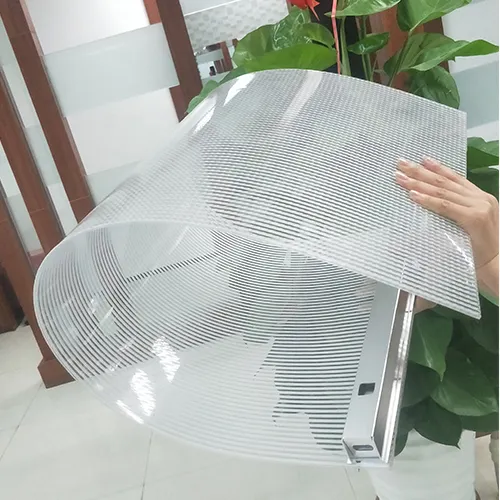

Adhesive transparent led display series:

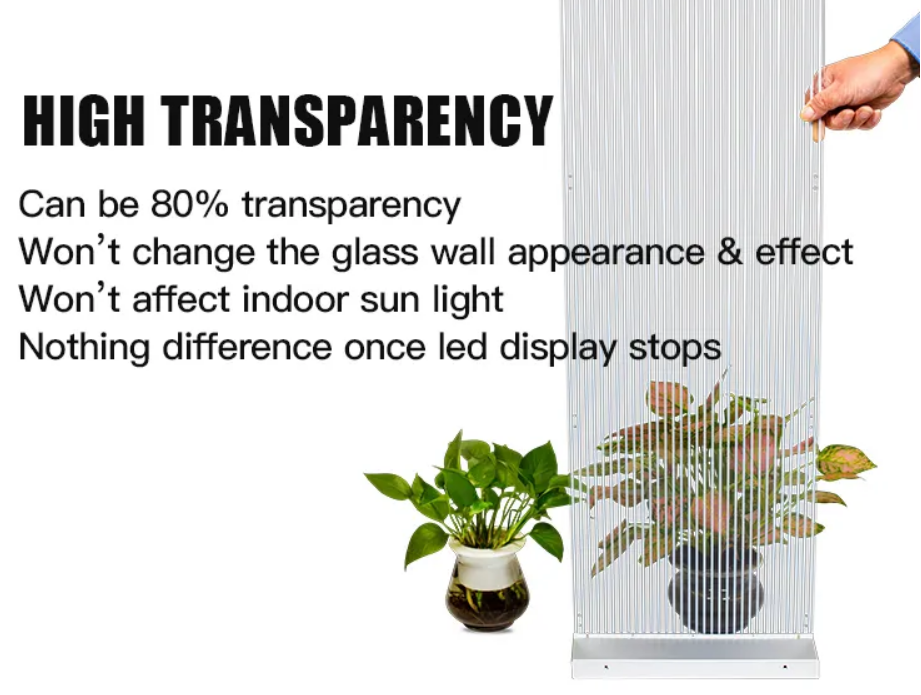

The Adhesive transparent led screen uses a specific integrated
chip, which fixes the component on a high-transparency PCB sheet.
Through a special capping process, the display module is integrated
into a minimum-thickness high-transmittance optical lens
substrate, which is only 1-3mm thick. The weight per square is
between 1-3kg, and its lightness can reduce the load-bearing of the
wall, glass, canopy, etc., and the permeability is as high as 90%,
which has little impact on the appearance of the building. When
resting, it can be integrated with glass, while working is another
"view" field, with high brightness and wide viewing angle, the
image effect presented is bright and beautiful.
Whole Screen Specification |
1 | Screen Brightness | ≥4000cd/m2 |
2 | Driving Method | Static scan |
3 | Best Viewing Distance | 5m - 30m |
4 | Max. Power Consumption | 750W/m2 |
5 | Average Power Consumption | 250W/m2 |
6 | Gray Level | 8bits input, 4096 levels(212) |
7 | Display Color | 16M |
8 | Frame Frequency | ≥50-60Hz |
9 | Refresh Frequency | ≥2000Hz |
10 | Uninterrupted Working Hours | ≥72 hours |
11 | Screen Life-span | ≥100,000 hours |
12 | MTBF | ≥5,000 hours |
13 | Discrete Blind Spot Rate | <1/10000 |
14 | Continuous Blind Spot Rate | None |
15 | Blind Spot Rate | <1/10000 |
16 | Protective Scale | For indoor /Semi-outdoor use only |
17 | Screen Plainness | <±1mm |
18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius |
Humidity:10%~90% RH |
20 | Control Mode | Synchronous display with control PC by DVI |
21 | Control System | DVI video card + full color control card + fiber system( optional) |
22 | Display Color | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
23 | Interface | Standard Ethernet |
24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet
cable <100m |
