Shenzhen Kingvisionled Outdoor Waterproof Video Wall Advertising
Digital Signage
Shenzhen Kingvisionled 16bit Customized Outdoor Perimeter LED
Display
Features:
- Product Name: Outdoor LED Screen
- Control System: Synchronization
- Warranty: 2 Years
- Size: Customized
- Used for: Customized Outdoor Led Display
- Brand name: Shenzhen Kingvisionled
- Fixed Outdoor Led Screen
- 960x960mm LED Display
- Outdoor Perimeter Led Display
Applications:
1.rain station and bus station digital billboard, airport
information showing system, street shop led message board for
advertising purposes
2.parking garages,electronic billboards,multimedia advertising
boards
Technical Parameters:
| Parameter | Value |
|---|
| Product | Fixed Outdoor LED Screen, Outdoor Perimeter LED Display, Outdoor
Perimeter LED Display Screen |
| Power Consumption | 300W/sqm |
| LED Lamp | SMD |
| Referesh Rate | 3840HZ |
| Certification | CE, FCC, RoHS |
| Control System | Synchronization |
| Lifespan | 100,000 Hours |
| Brand Name | Shenzhen Kingvisionled |
| Used For | Customized Outdoor LED Display |
| Size | Customized |
| Gray Scale | 16bit |
| Outdoor Fixed Installed Giant Advertising Media LED Displays |
| Main | Pitch/mm | P6 | P8 | P10 |
| Module size/mm | 320x160 | 256x128 | 320x160 |
| Density of pixel/(dots/m2) | 15,625 | 15,625 | 10,000 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD3535 | SMD3535 | DIP346 |
| Resolution of module | 32x32 | 32x16 | 16X16 |
| Optimum viewing distance | ≥6 | ≥6 | ≥10 |
| View angle / ° | 140H,120V | 140H,120V | 110 H,60 V |
| Average power consumption/W/M2 | 500 | 500 | 450 |
| Max power consumption/W/M2 | 1000 | 1000 | 950 |

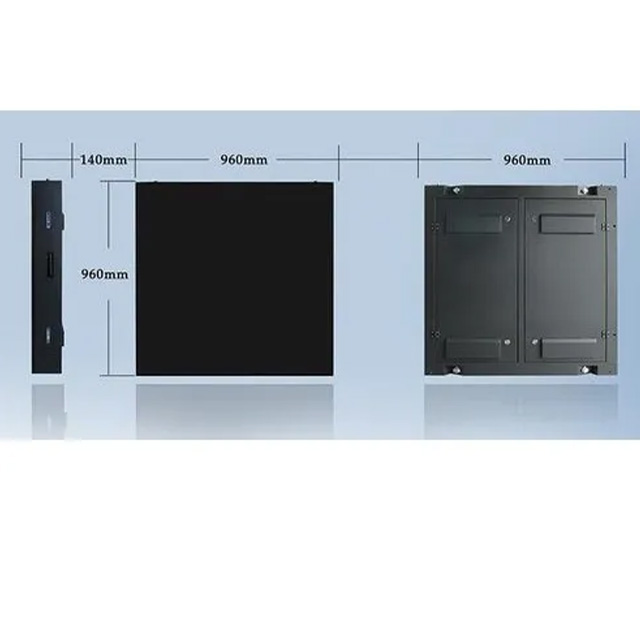

| Size of cabinet/mm | 960X960 | 960x960 | 960X960 |
| Resolution of cabinet | 128X96 | 128X96 | 96X96 |
| Driving method | 1/8scan constant current | 1/4 scan constant current | 1/2 scan constant current |
| Refresh rate Hz/S | ≥2880 | ≥2880 | ≥2880 |
| Luminance of white balance | ≥6000 nits | ≥6000 nits | ≥7500 nits |
| Operation of Environmental Temperature/℃ | below 30 to above 50 |
| IP rating | Front,IP65; |
| Working voltage | 110-220 VAC/+/- 10% |
| Grey scale/color | displaying colors≥16.7M(synchronized) |
| Brightness adjustment | 4096 levels of each color(manually),100 levels of each
color(automatically) |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| Control system | Linsn / Nova(sending card,receiving cards and Hubs) |
Customization:
Outdoor LED Screen
Brand Name: Shenzhen Kingvisionled
Model Number: P8
Place of Origin: Shenzhen
Certification: CE, Rohs, FFC
Minimum Order Quantity: 6 sqm
Price: USD380/sqm
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: T/T 50%,Balance before Shipment
Supply Ability: 200000sqm
Power Consumption: 300W/sqm
Used for: Customized Outdoor Led Display
Control System: Synchronization
Gray Scale: 16bit
Our Outdoor LED Screen is perfect for led billboard advertising screen, outdoor advertising led video
wall, fixed outdoor led screen, etc.
FAQ:
Q1: How can you ensure the led display product quality?
A1: All kinds of our screens have to do the aging test before
leaving factory. And we also have waterproof test and shaking test
to ensure the high-end level product quality.
Q2: Can I have a sample order of LED display screen?
A2: Yes, we welcome sample order to test and check quality. Both
for LED module or a whole screen.
- Free software updates.
- Full warranty for all parts and labor.
