Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display

Ask Lasest Price
Model Number :	P10
Brand Name :	King VisionLed
Supply Ability :	1000 Square Meter/Square Meters per Week
Price :	$410.00/Square Meters 6-49 Square Meters

Add to Cart

Product Details
Company Profile

Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display

Outdoor Fixed LED Screen application scenarios:

1. rain station and bus station digital billboard, airport information showing system, street shop led message board for advertising purposes

2. parking garages,electronic billboards,multimedia advertising boards

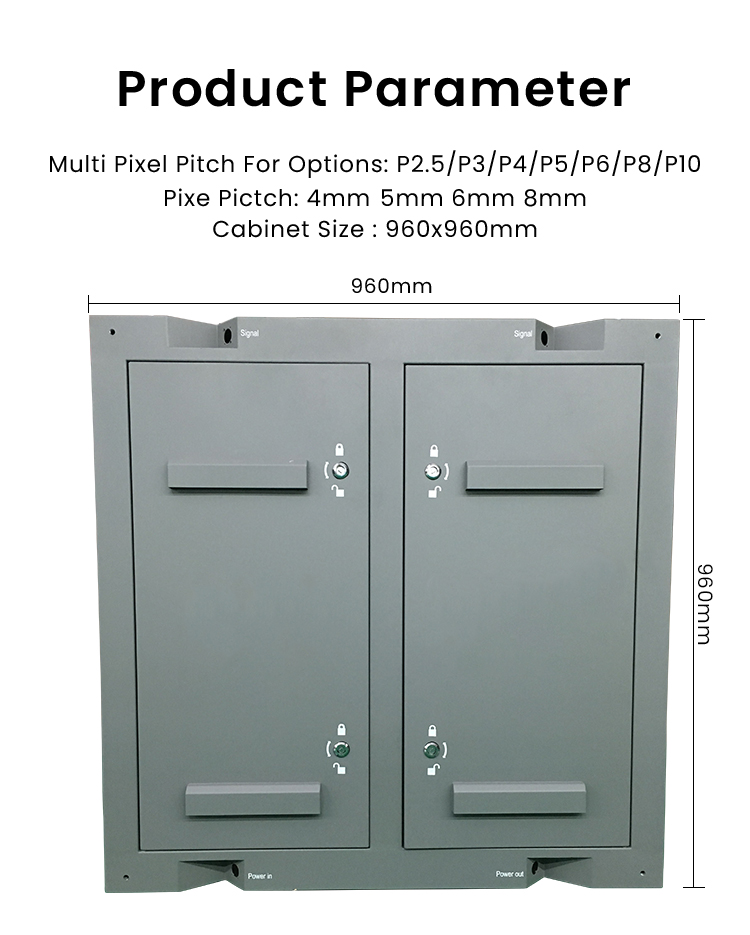

Outdoor Fixed LED Screen Specification
Pixe Pictch	4mm	5mm	6mm	8mm
Led encapsulation	SMD1921	SMD2727	SMD2727	SMD2727/SMD3535
Scan Mode	1/8 Scan	1/8 Scan	1/8 Scan	1/4 Scan
Pixe Per Sq.m	62,500 Pixel	40,000 Pixel	27,777 Pixel	15,625 Pixel
Module Size(W*H)	256*128mm	320*160mm	192*192mm	320320mm/320160mm
Cabinet Size(WHD)	1024*768mm	960*960mm	960*960mm	960*960mm
Cabinet Weight	45KG/Pieces	40KG/Pieces	40KG/Pieces	45KG/Pieces
Max Power Consumption	900Watt/m2	900Watt/m2	900Watt/m2	900Watt/m2
Brightness(Nits/m2)	5000Nits	5500Nits	6000Nits	6500Nits
Maintenance methods	Rear/Front Serviceable
Cabinet Material	Steel/Aluminun Option
Refresh Rate	1920hz-3840hz
Color temperature	6500K ±500(Adjustable)
Grey Scale	14-16bits
Average Power Consumption	500Watt/m2
IP Protection	IP65 Front/Rear
Operating Temperature	-20°C to 50°C
Working Voltage	100-240Volt(50-60hz)

Shenzhen King Visionled Optoelectronics Co.Ltd is a manufacturer which have lead-edge technologies in solving problems of led field.Jinhe was established in 2006 Shenzhen, with a plant area of 10,000 square meters, stuffs is 300 members,.At the end of 2012,the producing capability was reached up to 10000sq.m per month.It become the leading manufacturer in the LED industry soon.It's one of the fastest growing companies in China.

Pre-sale service:

1. Inquiries will be replied within 24 hours.

2. Market research and forecast for customer.

3. Provide unique and professional solutions based on customer's requirement.

4. Data sheet and samples offered.

5. Other required services such as special packing design, factory visiting and so on.

Our Service

1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety,

maintain equipment

2) Installation and debugging
Wecould send professionals to conduct on site installation and debugging in strict accordance with the

requirements of the schemes and original manual.

3) Warranty
Warranty: 3 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance

if any problem causedby quality itself. While you should take the cost of the freight to us. After 2 years,

service is still available, but would charge for labor, material and freight cost that generates.
