P8 P10 Full Color Double Side Dooh Display Outdoor Led Display Billboard Screen

Ask Lasest Price
Model Number :	P8
Brand Name :	King VisionLed
Supply Ability :	1000 Square Meter/Square Meters per Week
Price :	$575.00/Square Meters 6-49 Square Meters
Certification :	CE ,ROHS

Add to Cart

Product Details
Company Profile

P8 P10 Full Color Double Side Dooh Display Outdoor Led Display Billboard Screen

P8 P10 Outdoor Full Color Double Side Dooh Display Advertising LED Display Screen

Specification

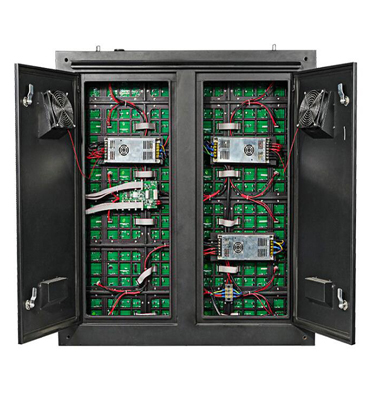

Outdoor Fixed LED Screen Specification
Pixe Pictch	4mm	5mm	6mm	8mm
Led encapsulation	SMD1921	SMD2727	SMD2727	SMD2727/SMD3535
Scan Mode	1/8 Scan	1/8 Scan	1/8 Scan	1/4 Scan
Pixe Per Sq.m	62,500 Pixel	40,000 Pixel	27,777 Pixel	15,625 Pixel
Module Size(W*H)	256*128mm	320*160mm	192*192mm	320320mm/320160mm
Cabinet Size(WHD)	1024*768mm	960*960mm	960*960mm	960*960mm
Cabinet Weight	45KG/Pieces	40KG/Pieces	40KG/Pieces	45KG/Pieces
Max Power Consumption	900Watt/㎡	900Watt/㎡	900Watt/㎡	900Watt/㎡
Brightness(Nits/㎡)	5000Nits	5500Nits	6000Nits	6500Nits
Maintenance methods	Rear/Front Serviceable
Cabinet Material	Steel/Aluminun Option
Refresh Rate	1920hz-3840hz
Color temperature	6500K ±500(Adjustable)
Grey Scale	14-16bits
Average Power Consumption	500Watt/㎡
IP Protection	IP65 Front/Rear
Operating Temperature	-20°C to 50°C
Working Voltage	100-240Volt(50-60hz)

Product Description

P8 P10 Full Color Double Side Dooh Display Outdoor Led Display Billboard Screen

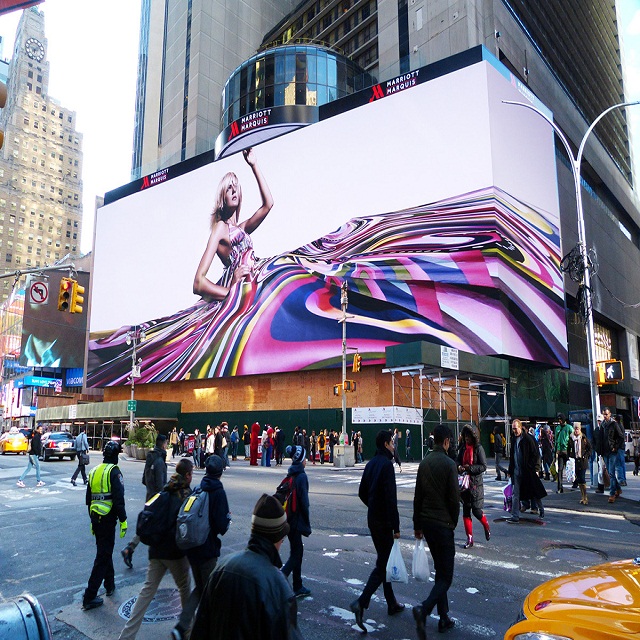

Customer Cases

Company Profile

Shenzhen Kingvisionled Optoelectronics Co.Ltd is a manufacturer which have lead-edge technologies in solving problems of led field.

King Visionled was established in 2006 Shenzhen, with a plant area of 10,000 square meters, stuffs is 300 members,.

At the end of 2012,the producing capability was reached up to 10000sq.m per month.It become the leading manufacturer in the LED industry soon.

It's one of the fastest growing companies in China.
Stable-quality is the foundation that makes us survive,high quality products and good sales performance is the supporter that drives us moving,

innovation and invention is the guarantee that makes the product competitively,

talent is a big power that pushesthe company become stronger and bigger.Widely using automatic machine production line,it is one of the companies

which has themost automated stage of production and have completely

equipment and facilities.Our products have passed International Environmental Certification of ROHS,CE,and CCC.That makes the production

internationalized.Our products have been sold to morethan 60 countries and areas in the world.

FAQ

Q1: How to install led display?
A1: We will provide drawing of steel structure or hanging truss, then you can install led display very easy.

Q2: Are your trading company or manufacturer?
A2: We are one of the best Manufacturers which one can provide the Best Solutions of LED Display in Shenzhen city of China.

Q3: What details need to provide before get a quotation?
A3: The buyer needs to provide pixel pitch, usage, dimension of screen and as more details as possible.

Q4: What are the terms of delivery?
A4: We accept EXW, FOB, CFR, CIF, DDU or Express (fast delivery).

Our Service

1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety,

maintain equipment

2) Installation and debugging
Wecould send professionals to conduct on site installation and debugging in strict accordance with the

requirements of the schemes and original manual.

3) Warranty
Warranty: 3 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance

if any problem causedby quality itself. While you should take the cost of the freight to us. After 2 years,

service is still available, but would charge for labor, material and freight cost that generates.

4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
