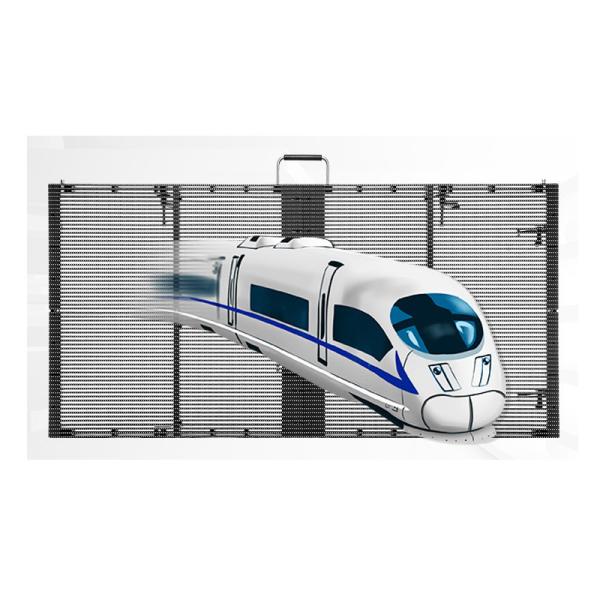

Video LED Curtain Screen P3.91 Indoor Outdoor Rental Transparent Screen

Ask Lasest Price
Model Number :	P3.91-7.8
Brand Name :	King VisionLed
Supply Ability :	1000 Square Meter/Square Meters per Week
Price :	$685.00/Square Meters 6-49 Square Meters
Certification :	CE, CCC, Rohs, FCC ISO
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

Video LED Curtain Screen P3.91 Indoor Outdoor Rental Transparent Screen

LED Curtain Screen 500*1000mm P3.91 Indoor Outdoor Rental Transparent Screen

Detail of LED Curtain Screen:
1. High transparent effect with high transparency rate of 60% - 95%, ensure the lighting requirements and angle between floors, glass windows, facade lighting structure.Small space occupation, light weight. The display thickness is only 10 cm, the display screen body weight only 15 Kg/㎡.
2. No steel frame construction
No steel frame construction, save a lot of installation and maintenance costs. Directly fixed on the glass curtain wall.
Unique display effect: because the display background is transparent, the advertisement picture can be suspended on the glass curtain wall, shows good advertisement effect and artistic effect.
3. Convenient maintenance
Indoor maintenance, quick and safe, save manpower and material resources.no traditional air conditioning cooling system, save more than 35% energy than ordinary LED display

LED Curtain Screen Parameters
Model	LW-T3	LW-T7	LW-T10
Pixel Pitch(mm)	3.9 × 7.8	7.8 × 7.8	10.4 × 10.4
Module size(mm)	1000 × 500	1000 × 500	1000 × 500
Pixel(pixels/pcs)	256 × 64	128 × 64	96 × 48
Pixel density (pixels/m2)	32768	16384	9216
Pixel configuration	SMD 3in1	SMD 3in1	SMD 3in1
Video frame rate
Brightness(cd/m2)	4000	2500	2500
Horizontal viewing angle	160°	160°	160°
Vertical viewing angle	120°	120°	120°
transparency	85%	85%	87%
Grayscale	16384	16384	16384
Driving method	1/8 scan	1/8 scan	1/6 scan
Display refresh rate	3840	3840	3840
Video frame rate	60	60	60
Operation state
Input power(max)(W/m2)	400	400	400
Input power(nor)(W/m2)	200	150	100
Input voltage (V)	100 ~ 240V AC, 47 ~ 63Hz
Performance temp	-20 ~ 50ºC
Storage temp	-40 ~ 80ºC
Humidity operating	10%~90%RH
Lifetime(hours)	≥10000
Lifespan (hours)	100000
Discrete out of control	≤0.0001,
Continuous out of control	0
Scotoma rate	≤0.0001,
Protect (Front/Reverse)	IP42
Product features
Installation	Lifting / Vertical loading
Border bevel	45°
Arc splicing	≥90°
weight(kg/m2)	10
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Video LED Curtain Screen P3.91 Indoor Outdoor Rental Transparent Screen

Transparent LED display boards allow for a stunning display of visual effects on any glass surface that is sure to dazzle your audience. Transparent LED display boards are highly suitable for retail applications in store outlets and restaurants. Designed for transparent LED display boards, it is light in weight and high in brightness – a superior choice for advertising, promotion or entertainment.
Contrast with traditional screen: the advantage of transparent LED screen
