Led Display Video Wal Tv Studios Immersive 8k Display Panal Screens
Event Shooting Background
4K 8K LED Video Wall Product description:
1. Diverse cabinets size customization provide both 640*480 ize of
cabinets, adaptable to the multiple size of cabinets connection.
2. The wide viewing angle allows clear visions from different
positions.
3. 1 + 1 backup--The main and standby power supply are installed in
the cabinet, which can switch automatically if malfunction happens.
4. Three standard sizes of aluminum die casting cabinets can be
delivered quickly through standardized & modularized main materials
and accessories.
5. No need to add additional load-bearing structure, which can
effectively reduce installation costs.
4K 8K LED Video Wall of Technical Parameter
| Parameter | P1.875mm HD LED Screen | P2.5mm HD LED Video wall |
| Pixel Pitch | 1.875mm | 2.5mm |
| Pixel Configuration | SMD 3-IN-1 | SMD2121 3-IN-1 |
| Pixel Density | 284,089 dots/m² | 160,000 dots/m² |
| Module size | 240x240mm | 240x240mm |
| Cabinet Size | 480x480mmx57mm | 480x480mmx57mm |
| Panel Dimension (WxHxD) | 18.9''X18.9''X3'' | 18.9''X18.9''X3'' |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight | 4.9kg/panel (10.8lb/panel) | 6.8kg/panel (15lb/panel) |
| Refresh Rate | 1920Hz~3840Hz | 1920Hz~3840Hz |
| Brightness | 1000nits(Adjustable) | 1200nits(Adjustable) |
| Horizontal Viewing Angle(°) | 160 ° | 160 ° |
| Vertical Viewing Angle(°) | 160 ° | 160 ° |
| AC Power Input(V) | AC110V~ 220V ±10% | AC110V~ 220V ±10% |
| AC Power Frequency(Hz) | 50 ~ 60 Hz | 50 ~ 60 Hz |
| Max. Power(W/m²) | 565 W/m² | 520 W/m² |
| Avg. Power(W/m²) | 189 W/m² | 170 W/m² |
| Storage/Operating Humidity(RH ) | 10% ~ 90%RH | 10% ~ 90%RH |
| IP Rating(IP ) | IP30 / IP30 | IP30 / IP30 |
| Lifetime Typical Value(Hrs) | 100,000 Hrs | 100,000 Hrs |
| Installation Type | Front&Rear installation | Front&Rear installation |
| Maintenance Method | Front&Rear Access Maintenance | Front&Rear Access Maintenance |
Product Details & Application
1.Magnetic Module with frame-sharing 480x480mm die-casting aluminum
cabinets
2. Friendly Cabinet design with comfortable rounded corner

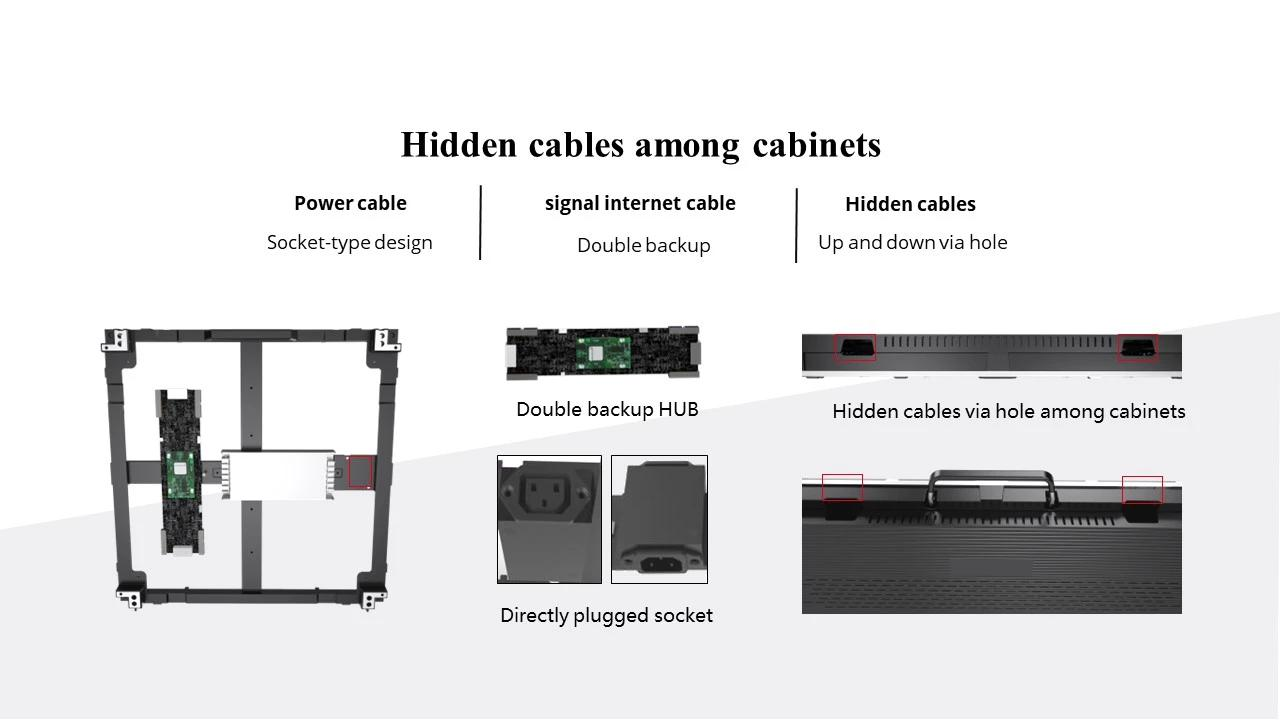

handle,heat emission holes,signal indicator testing button,OEM
Label, Anti-collision corner,Hidden cables design and front
maintenance tool design.
3.Free-structure Install, flexible for wall mounted fixed and
saving installation cost and space
4.Wide application indoor stage rental or indoor advertising or
presentation
Our Services of 4K 8K LED Video WALL
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized
in led display industry for more than 7 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority. Brighter people always attach great
importance to quality controlling from the very beginning to the
very end. We focus on every detail,Our factory has gained ISO9001,
ISO14001, CE, RoHS ,FCC authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led
modules and 10-12days for the led finished screen according to the
size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including
the operation and maintenance training of the LED screens in our
factory. we can send an engineer team to the country of the
customer to instruct the installation.
