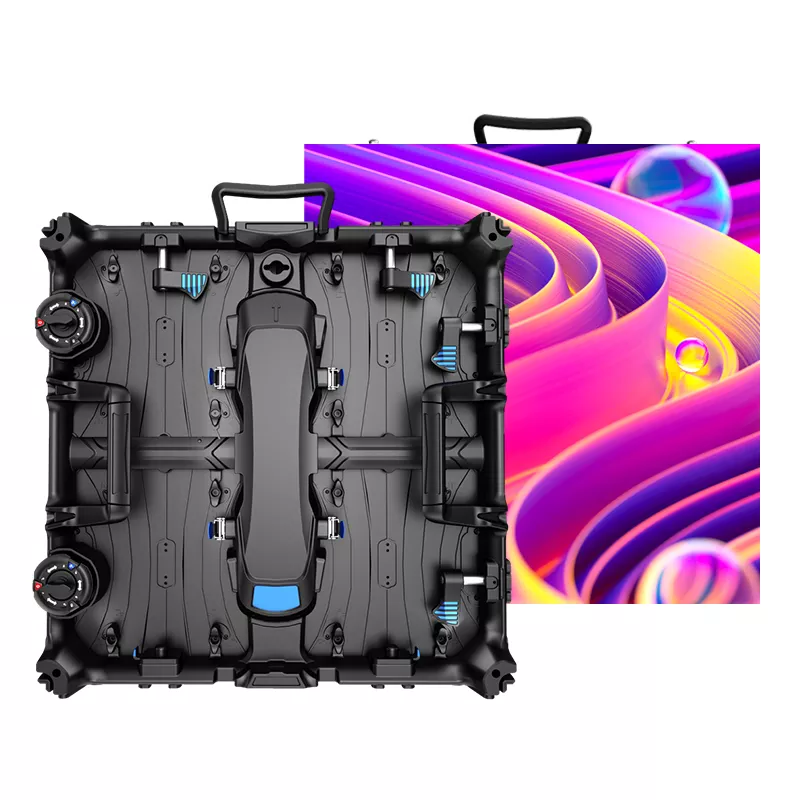

Shenzhen Factory 500x500mm Indoor Led Display P29 P28 P287 P29 P297 Curve Screen Panel Video Wall

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

Speification of Outdoor Rental Led Display:

Module Number	PH2.604	PH2.976	PH3.91	PH4.81
Pixel Pitch	2.604mm	2.976mm	3.91mm	4.81mm
Physical Density	147456 pixels/m2	112896 pixels/m2	65536 pixels/m2	43264 pixels/m2
Led Arrangement	3 in 1SMD	3 in 1 SMD	3 in 1SMD	3 in 1 SMD
Module Resolution	96*96 pixels	84*84 pixels	64*64 pixels	52*52 pixels
Module Dimensions	250*250 mm	250*250mm	250*250 mm	250*250mm
Cabinet Resolution	192*192 pixels	168*168 pixel	128*128 pixels	104*104 pixel
Cabinet Dimensions	500*500 mm	500*500 mm	500*500 mm	500*500 mm
Cabinet Weight	7.5kg	7.5kg	7.5kg	7.5kg
Brightness	≥5000 nits	≥5000 nits	≥5000 nits	≥5000 nits
Max Power Consumption	180w/panel	180w/panel	180w/panel	132w/panel
Ave Power Consumption	60w/panel	60w/panel	60w/panel	44w/panel
Viewing Angle	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)
Operating Power source	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz
Operating Temperature	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz
IP Rating	IP65	IP65	IP65	IP65
Signal Input Source	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Verification	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE

Curved Installation

High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use
before. Rotational control, more accurate, easy to use and quickly adjust curve degree.

Pre-sale service:

Inquiries will be replied within 24 hours. Market research and forecast for customer. Provide unique and professional solutions based on customer's requirement. Data sheet and samples offered. Other required services such as special packing design, factory visiting and so on.

In-sale service:

Tracking producing procedures all the time. Provide photos and videos as per customer's requirement during production. Free spare parts provided.

After-sale service:

Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours. Warranty: 24 months. Free technician training. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

Shenzhen King Visionled Optoelectronics Co.,Ltd is a specialized manufacturer of LED products to undertake OEM, ODM regular manufacturers: research and development, production, sales, engineering services as one of the modern high-tech enterprises! The company is located in Xili Town, Nanshan District, Shenzhen, with 5,000 square meters of modern scientific research and development , equipped with world-class scientific research, production, analysis, testing and other equipment, own an excellent team of led display design, production, Installation and construction of high-quality . "integrity, pragmatic, rigorous, innovative" are the company's core values, is committed to providing high-quality products, improve services and comprehensive solutions with customer, adhere to customer first, a deep understanding of customer needs and actively match customer strategy, Take the initiative to take social responsibility, and continuously enhance customer experience and satisfaction, and create more value to win customer trust and support. To achieve long-term cooperation between new and old customers and win-win situation.

The company mainly produces products: indoor led display, outdoor LED display, stage LED screen, mobile rental LED display, stage background LED display, and traffic sports LED display and a series of full color, indoor and outdoor single color product. The company product has covered more than 30 provinces, municipalities and autonomous regions of mainland China, Hong Kong, Macao and Taiwan regions, and exported to the European Union, the United States, Japan, Malaysia, Thailand, Vietnam, Korea, Australia, South America, Middle East and other countries.
